Technical Parameters
Model | S-120 |
Max. working pressure | 63Mpa |
Cutting force | 293KN |
Max. Cutting opening | 120mm |
Cutting performance(Q235A round bar) | 28mm |
Net weight | 14.8kg |
Hydraulic oil | 10# Aviation hydraulic oil |

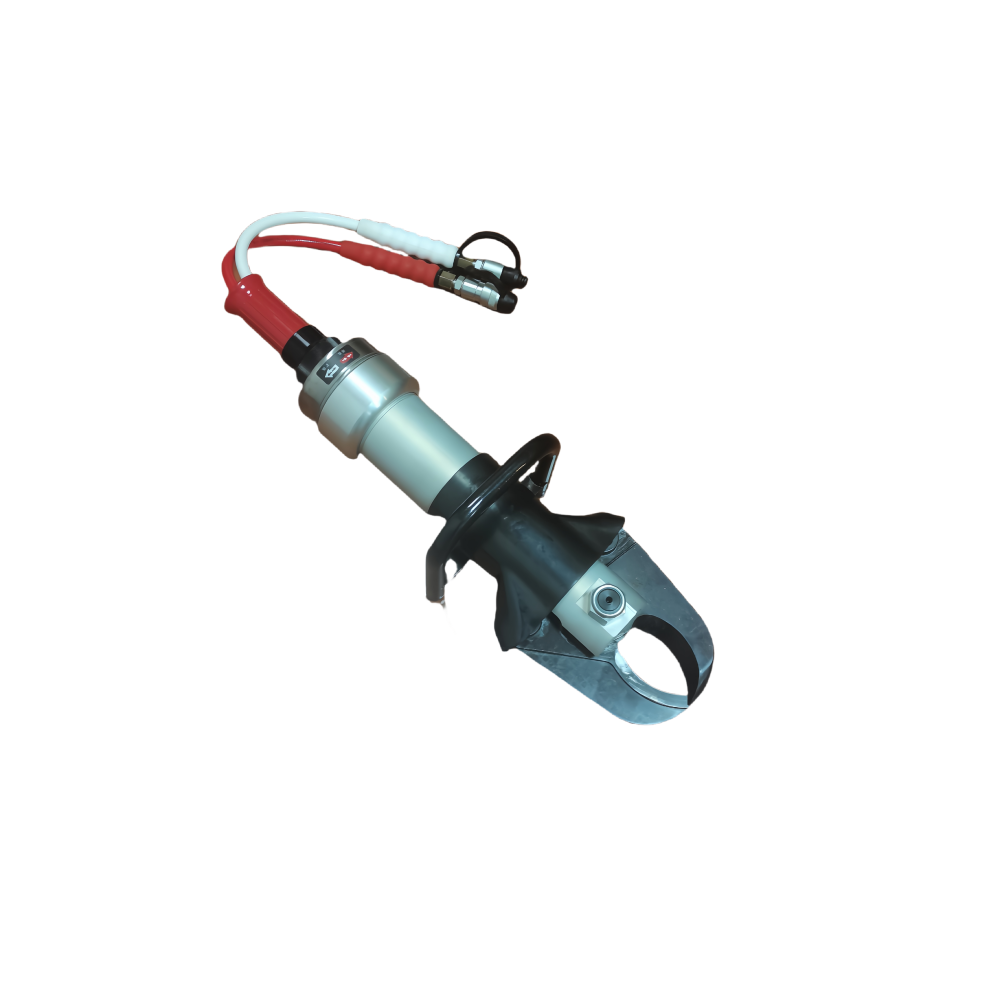

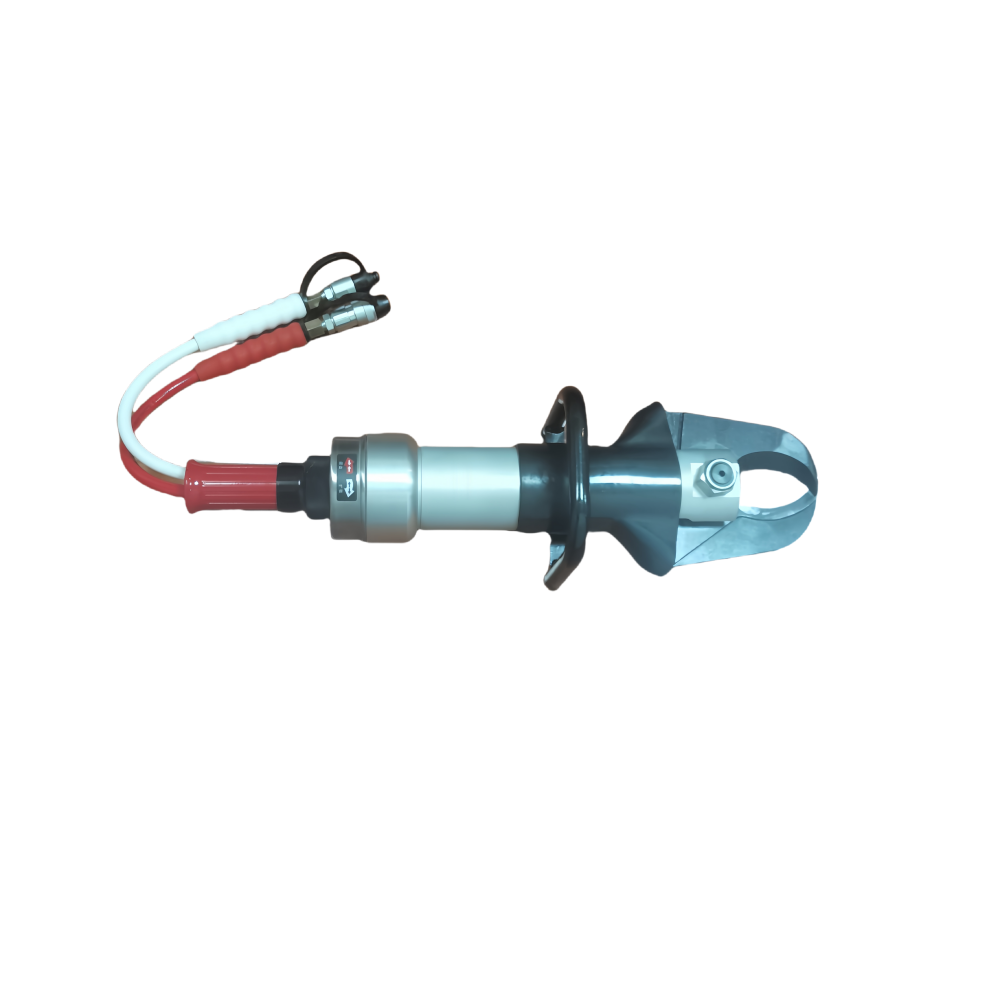

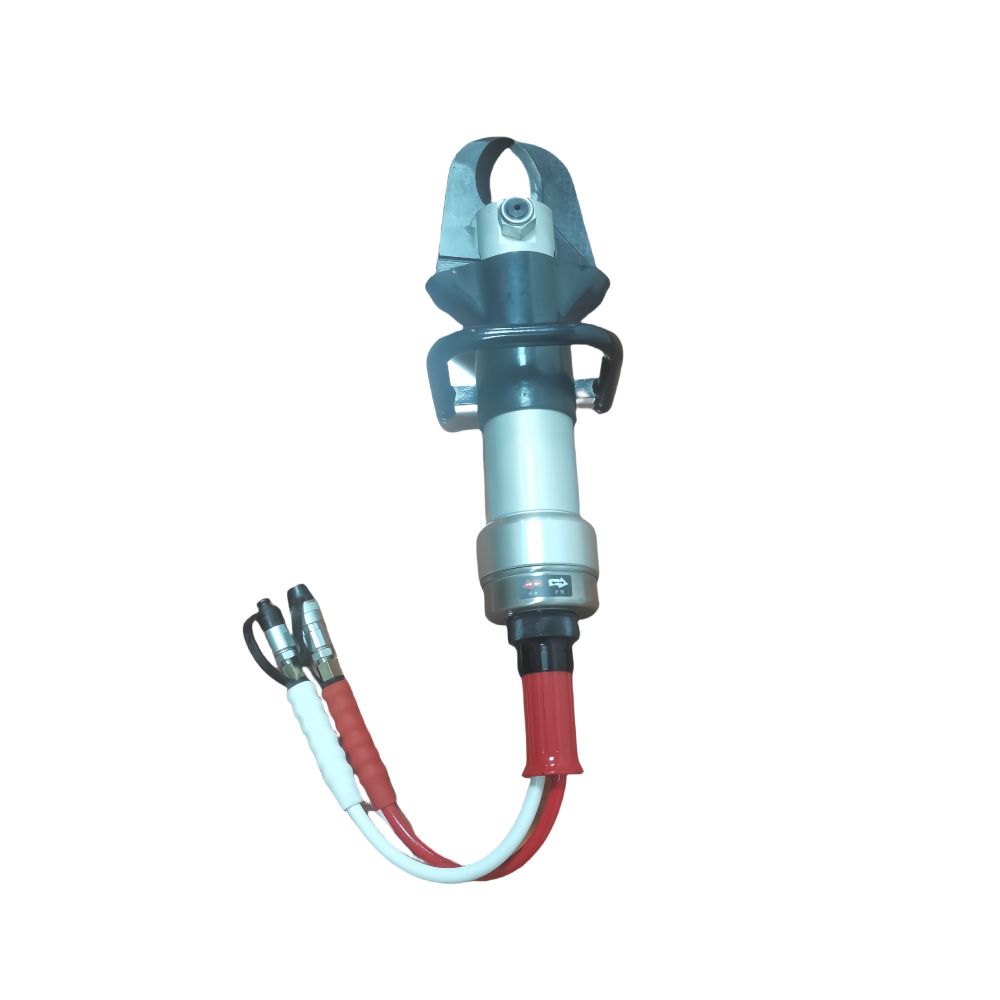

Hydraulic cutter S-120 is JADESTAND first generation rescue cutter,The oil inlet hose and the oil return hose are designed separately, which effectively reduces the accumulation of heat. It is a rescue tool that can work continuously for a long time. It is economical and practical.
Model | S-120 |
Max. working pressure | 63Mpa |
Cutting force | 293KN |
Max. Cutting opening | 120mm |
Cutting performance(Q235A round bar) | 28mm |
Net weight | 14.8kg |
Hydraulic oil | 10# Aviation hydraulic oil |
1.The oil inlet hose and the oil return hose are designed separately, which effectively reduces the accumulation of heat.
2.Jadestand first generation hydraulic cutter,affordable and practical
