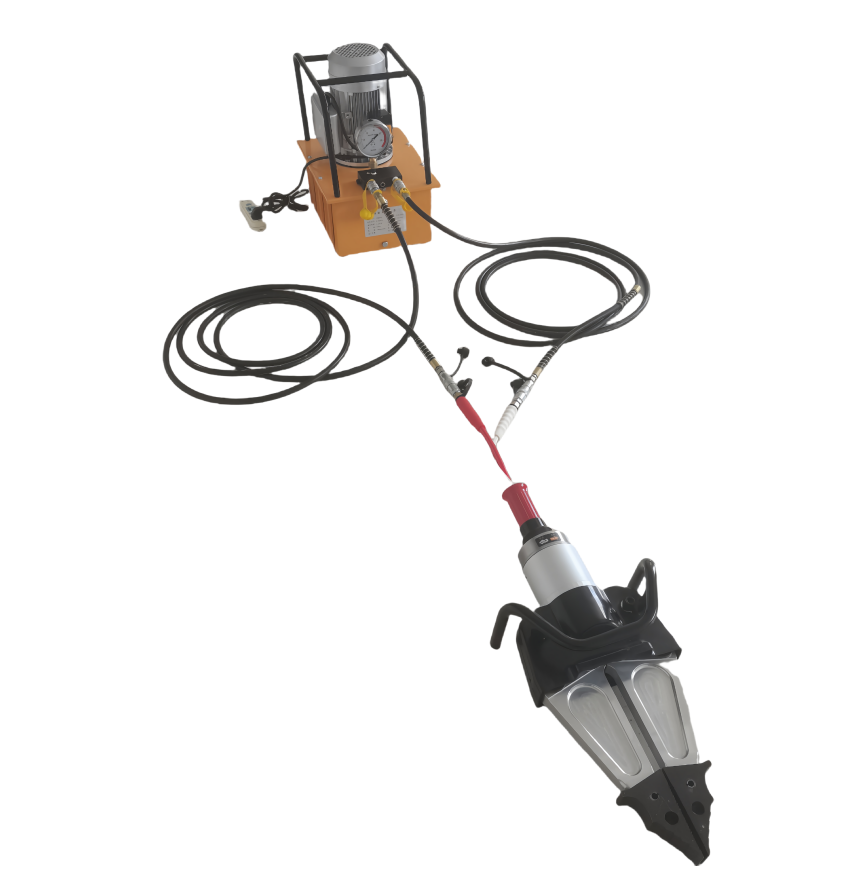

Industrial spreader SP-600

The SP-600 industrial spreader is specially developed for high-frequency industrial use. Inserting Jadestand’s SP-600 industrial spreader into the body-in-white welding assembly can simply determine the firmness of the key welds of the body-in-white through a weld point destruction test. The tool has a small insertion gap and a large spreading distance. It is designed for high-frequency and long-term industrial applications and can be used for long-term weld point destruction. Jadestand industrial spreading equipment can be used for destructive testing of body or body welds of automobile factory to help factory improve production efficiency.

Add to Wishlist

Description

Technical Parameters

Spreader Model	SP-600
Max. working pressure	60Mpa
Max. spreading distance	600mm
Max. spreading force	147KN
Traction force	62KN
Net weight	17.8kg
Hydraulic oil	10# Aviation hydraulic oil
Dimensions (LxWxH)	745305205mm
Stationary pump	EHP-1500
Working pressure	60Mpa
Low pressure	0.7Mpa
High pressure flow	1.8L/min
Low pressure flow	7.9L/min
Motor power	1.5kw
Voltage	220v (110v/380v optional)
Frequency	50/60Hz
Current	6.8A
Motor speed	1400r/min
Oil tank volume	20L
Standard hose length	6m
Weight	35.5kg

1.The whole spreading integrated design is more solid;

2.The cylinder body is designed with steel structure and is durable.

3.The large-capacity oil tank has good heat dissipation performance and can maintain long-term operation

4.There is a built-in extrusion plate under the spreading arm, and a “shark tooth” spreading head with a thorny diamond particle structure.

5.The tool is connected with a double hose and a single interface, which can easily visually check the use of the hose and can be plugged and unplugged under pressure; the interface adopts a mechanical thread rotation connection, which is safe and reliable. It can be easily connected even with gloves, and the connection is safe and reliable.

6.The use of a star-shaped manual valve on the tool allows rescuers to easily operate it at any position with even one finger, which is simpler and safer.
